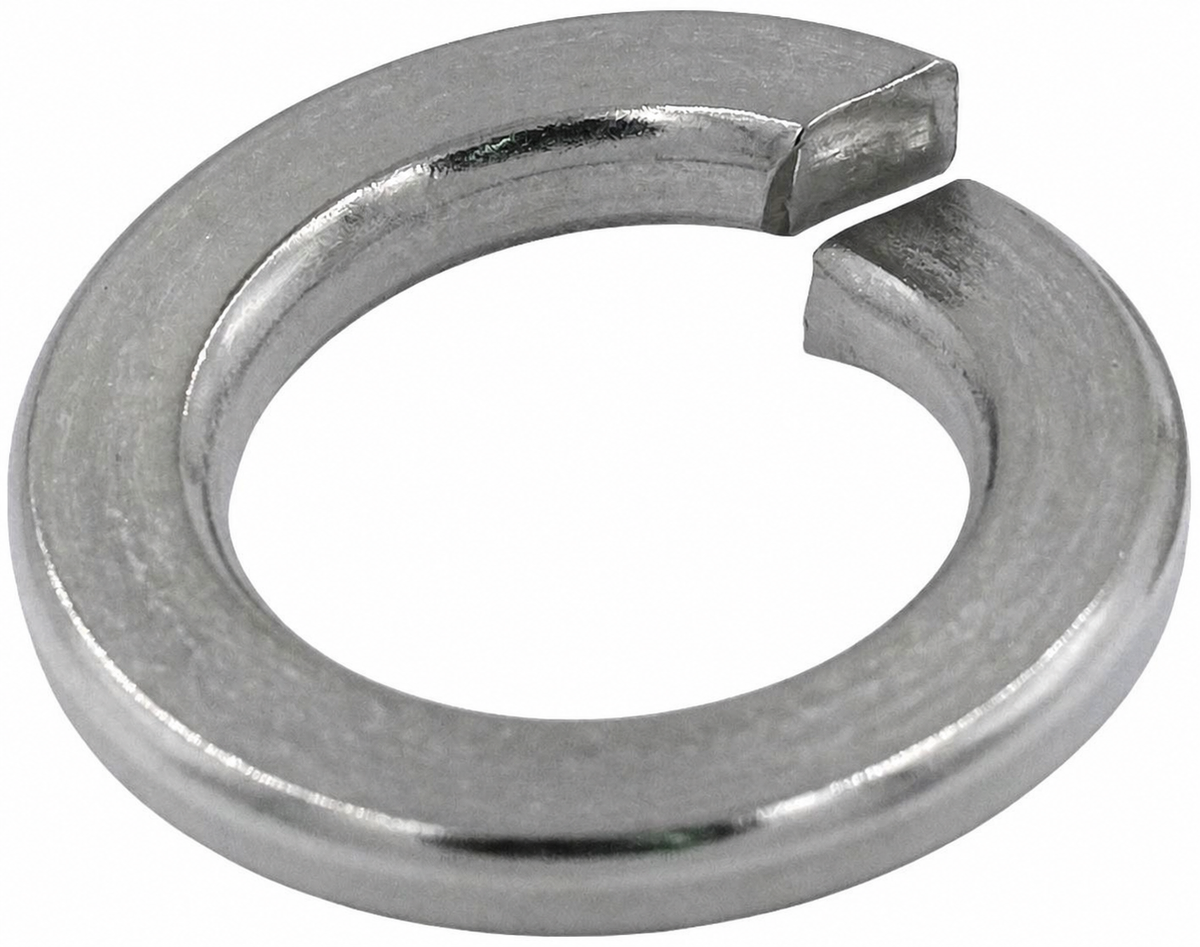

M5 Split Lock Washer, Stainless Steel 304
Pricing and availability coming soon.
Home › Split Lock Washers › M5 Split Lock Washer, Stainless Steel 304
M5 Split Lock Washer, Stainless Steel 304 — a M5 washer in Stainless Steel 304. Distributes clamp load over the joint surface and protects the finish beneath the head or nut.
Specifications
| Thread size | M5 |
|---|---|
| Thread pitch | 0.8 mm (coarse) |
| Length | 1.2 mm (0.047 in) |
| Outside diameter | 9.2 mm (0.362 in) |
| Thread configuration | N/A |
| Body shape | Round |
| Material | Stainless Steel 304 |
| Finish | Plain |
| Strength grade / class | A2-70 |

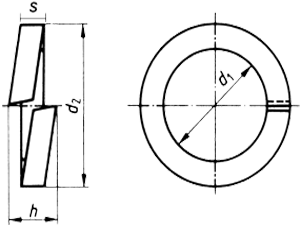

| Standards | DIN 127B |
| Max continuous temperature | 400 °C (752 °F) |
| RoHS | Compliant |
| Unit weight | 0.438 g |
| Standard pack | 100 pcs |
| HTS classification | 7318.15.2000 |
Installation reference
- Tap drill for M5: 4.2 mm (0.165 in) at 75% thread engagement
- Nearest imperial thread: #10-32 — similar in diameter but not interchangeable
About Stainless Steel 304
304 stainless resists general atmospheric and indoor corrosion and is non-magnetic in the annealed condition. It is not the right choice for salt spray or chloride exposure — 316 is. Stainless threads can gall under speed or load; back off the driver and use an anti-seize compound on repeated assemblies.
