#4-40 Brass Hex Standoff, Female-Female, 10mm
Pricing and availability coming soon.
Home › PCB Standoffs › #4-40 Brass Hex Standoff, Female-Female, 10mm

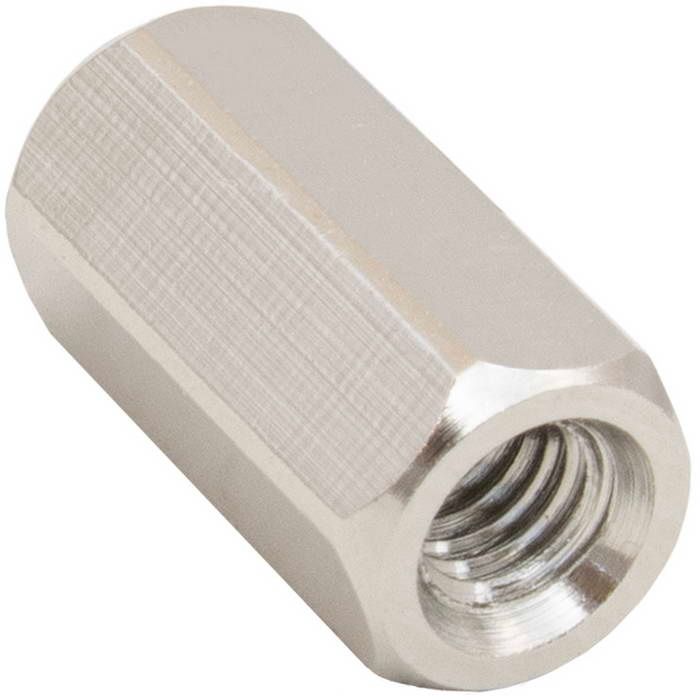

#4-40 Brass Hex Standoff, Female-Female, 10mm — a hex standoff in Brass with female threads at both ends. Used to space a printed circuit board off its chassis, to stack boards at a fixed pitch, and to mount panels and covers inside an enclosure.
Specifications
| Thread size | #4-40 |
|---|---|
| Length | 10 mm (0.394 in) |
| Across flats | 4.76 mm (0.187 in) |
| Thread configuration | Female-Female |
| Body shape | Hex |
| Material | Brass |
| Finish | Plain |
| Standards | DIN 6334 |
| Max continuous temperature | 200 °C (392 °F) |
| RoHS | Compliant |
| Unit weight | 1.668 g |
| Standard pack | 100 pcs |
| HTS classification | 7415.29.0000 |
About Brass
Brass conducts, so a brass standoff can serve as a chassis ground path. It machines cleanly, holds thread accurately at small sizes, and will not gall against steel the way stainless can.
Related reference
- Fastener standards cross-reference: ASME, ISO and DIN
- Tap drill size chart — metric, UNC and UNF
- Metric to imperial fastener conversion
- Bolt head markings and grade chart
- All pcb standoffs
- All reference charts
Need a quantity, a length or a material that is not listed? Send us the specification and we will source it.
