M4 x 5mm Socket Head Cap Screw, Stainless Steel 304
Pricing and availability coming soon.
Home › Socket Head Cap Screws › M4 x 5mm Socket Head Cap Screw, Stainless Steel 304
M4 x 5mm Socket Head Cap Screw, Stainless Steel 304 — a M4 socket cap screw in Stainless Steel 304, driven with a hex socket.

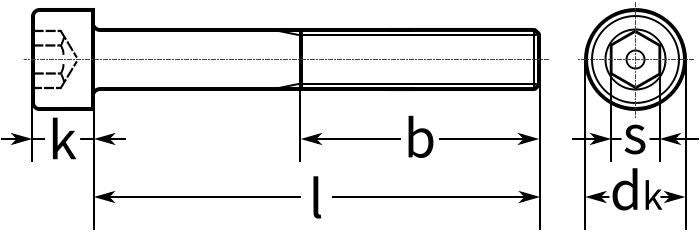

Specifications
| Thread size | M4 |
|---|---|
| Thread pitch | 0.7 mm (coarse) |
| Length | 5 mm (0.197 in) |
| Outside diameter | 7.0 mm (0.276 in) |
| Head style | Socket Cap |
| Drive | Hex Socket |
| Thread configuration | N/A |
| Body shape | N/A |
| Material | Stainless Steel 304 |
| Finish | Plain |
| Strength grade / class | A2-70 |
| Standards | ISO 4762, DIN 912 |
| Max continuous temperature | 400 °C (752 °F) |
| RoHS | Compliant |
| Unit weight | 1.642 g |
| Standard pack | 100 pcs |
| HTS classification | 7318.15.2000 |
Installation reference
- Clearance hole: 4.5 mm (0.177 in) — ISO 273 medium fit
- Tap drill for M4: 3.3 mm (0.13 in) at 75% thread engagement
- Hex key required: 3.0 mm
- Nearest imperial thread: #8-32 — similar in diameter but not interchangeable
About Stainless Steel 304
304 stainless resists general atmospheric and indoor corrosion and is non-magnetic in the annealed condition. It is not the right choice for salt spray or chloride exposure — 316 is. Stainless threads can gall under speed or load; back off the driver and use an anti-seize compound on repeated assemblies.
Related reference
- Fastener standards cross-reference: ASME, ISO and DIN
- Tap drill size chart — metric, UNC and UNF
- Metric to imperial fastener conversion
- Bolt head markings and grade chart
- All socket head cap screws
- All reference charts
Need a quantity, a length or a material that is not listed? Send us the specification and we will source it.
