M2.5 x 6mm Pan Head Phillips Screw, Stainless Steel 304
Pricing and availability coming soon.
Home › Pan Head Screws › M2.5 x 6mm Pan Head Phillips Screw, Stainless Steel 304

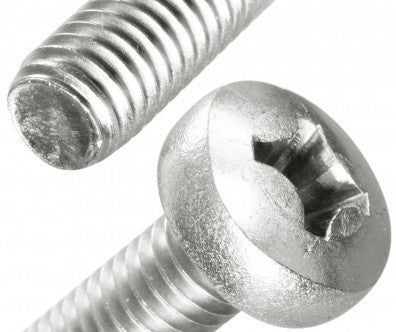

M2.5 x 6mm Pan Head Phillips Screw, Stainless Steel 304 — a M2.5 pan screw in Stainless Steel 304, driven with a phillips.
Specifications
| Thread size | M2.5 |
|---|---|
| Thread pitch | 0.45 mm (coarse) |
| Length | 6 mm (0.236 in) |
| Outside diameter | 5.0 mm (0.197 in) |
| Head style | Pan |
| Drive | Phillips |
| Thread configuration | N/A |
| Body shape | N/A |
| Material | Stainless Steel 304 |
| Finish | Plain |
| Strength grade / class | A2-70 |
| Standards | ISO 7045, DIN 7985 |
| Max continuous temperature | 400 °C (752 °F) |
| RoHS | Compliant |
| Unit weight | 0.525 g |
| Standard pack | 100 pcs |
| HTS classification | 7318.15.2000 |
Installation reference
- Clearance hole: 2.9 mm (0.114 in) — ISO 273 medium fit
- Tap drill for M2.5: 2.05 mm (0.081 in) at 75% thread engagement
- Nearest imperial thread: #3-48 — similar in diameter but not interchangeable
About Stainless Steel 304
304 stainless resists general atmospheric and indoor corrosion and is non-magnetic in the annealed condition. It is not the right choice for salt spray or chloride exposure — 316 is. Stainless threads can gall under speed or load; back off the driver and use an anti-seize compound on repeated assemblies.
