#4-40 Brass Hex Standoff, Male-Female, 6mm
Pricing and availability coming soon.
Home › PCB Standoffs › #4-40 Brass Hex Standoff, Male-Female, 6mm

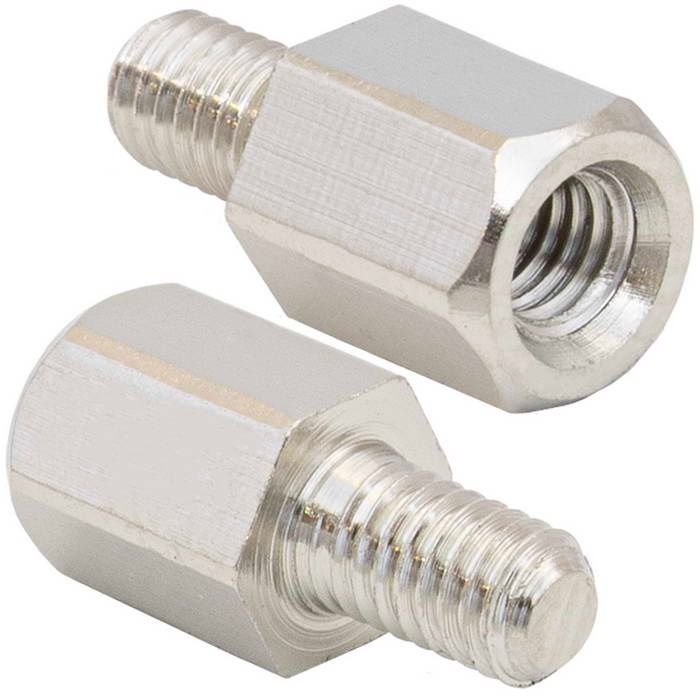

#4-40 Brass Hex Standoff, Male-Female, 6mm — a hex standoff in Brass with male thread at one end and a female thread at the other. Used to space a printed circuit board off its chassis, to stack boards at a fixed pitch, and to mount panels and covers inside an enclosure.
Specifications
| Thread size | #4-40 |
|---|---|
| Length | 6 mm (0.236 in) |
| Across flats | 4.76 mm (0.187 in) |
| Thread configuration | Male-Female |
| Body shape | Hex |
| Material | Brass |
| Finish | Plain |
| Standards | DIN 6334 |
| Max continuous temperature | 200 °C (392 °F) |
| RoHS | Compliant |
| Unit weight | 1.001 g |
| Standard pack | 100 pcs |
| HTS classification | 7415.29.0000 |
About Brass
Brass conducts, so a brass standoff can serve as a chassis ground path. It machines cleanly, holds thread accurately at small sizes, and will not gall against steel the way stainless can.
